| 应用范围 | 汽车 | 货号 | 咨询客服 | 品牌 | YUNXU/云旭 |
| 型号 | 紫罗兰 | 产品系列 | 汽车继电器 | 触点负载 | 30A |
| 触点切换电流 | 35MA | 触点切换电压 | 7.8 | 触点形式 | 1A 1B 1C |
| 额定电流 | 30A | 额定电压 | 12VDC | 防护特征 | 密封 |

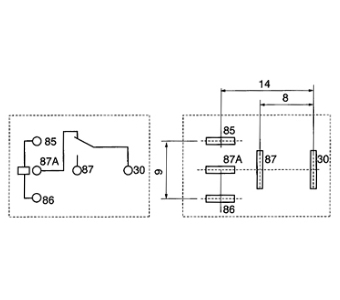

安装尺寸
| Contact Data | |||
| Contact Form | 1A SPST(NO); 1C SPDT(B-M) | ||
| Contact Material | Silver Alloy | ||
| Contact Resistance | 50mΩ (1A 6VDC) | ||
| Contact Rating | NO:30A/14VDC; NC:20A/14VDC | ||
| Electrical Endurance | 10^5 times | ||
| Mechanical Endurance | 10^7 times | ||
| Coil Rating | |||
| Nominal Coil Power | 1.6W;1.8W | ||
| Coil Versions | |||
| Nominal Voltage (VDC) | Pull-in Voltage (VDC) | Release Voltage (VDC) | Coil Resistance (Ω) |
| 12 | 8.4 | 1.2 | 80 |
| 24 | 16.8 | 2.4 | 320 |
| Operation Specification | |||
| Insulation Resistance | 100mΩ 500VDC | ||
| Dielectric Strength | BCC 50Hz 500V | ||
| BOC 50Hz 500V | |||
| Operate/Release Time | 15ms/10ms | ||
| Terminal Type | Outlet terminal | ||
| Outline size (mm) | 20.3x15.5x26 | ||
| Weight | 20g | ||
| Model Reference | TYCO SIEMENS VF VFM | ||
